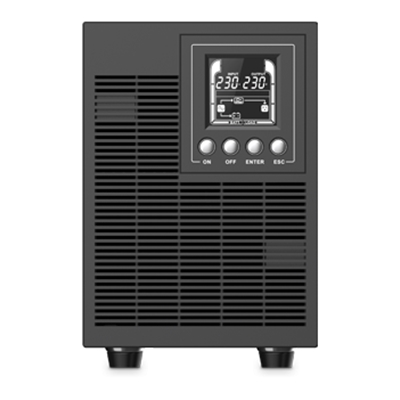

UPS ATLANTIS A03-OP1502P 1500VA/1350W DOPPIA CONVERS., SMART BATTERY MANAG.-INTERFACCIA USB/RS232/EPO-TRIPLA BATT.12V FINO:30/04

Descrizione

UPS ATLANTIS A03-OP1502P 1500VA/1350W DOPPIA CONVERS., SMART BATTERY MANAG.-INTERFACCIA USB/RS232/EPO-TRIPLA BATT.12V

Power Rating (VA): 1500
Power Rating (W): 1350

Input:
– 80VAC-300VAC (load <=30%±5%)
– 120VAC-300VAC (load <=60%±5%)
– 140VAC-300VAC (load <=80%±5%)
– 160VAC-300VAC (load <=100%±5%)
Frequency Range: 40Hz to 70Hz
Power Factor: >0,99 (Normal Voltage)

Output:
– Voltage: 208/220/230/240VAC
– AC Voltage Regulation: ±1%
– Frequency Range: 50Hz (±0.5%) or 60Hz (±0.5%)
– Waveform: Pure SineWave
– Crest Ratio Current 3:1 (Max)
– Harmonic Distortion (THDU): min 3% THD (liner Load) / min 5% THD (Non liner Load)

Transfer:
– AC->Battery: Zero
– INV->ByPass: Less than 4ms (typical)
WaveForm (Batt. Mode): Pure Sinewave

Efficiency:
– AC Mode = 89%
– Battery = 85%
– ECO = 97%

Battery:
– Voltage: 36VDC
– Capacity: 12V/9.0Ah
– Quantity: 3
– Recharge Time: 4 hours to (90%)
– Type: Sealed Maintenance Free Lead Acid VRLA Type
– Design: Swappable battery design
– Charging Voltage: 41,1VDC ±1%
– Charging Current: 1.5A Max

Indicators (display LCD):
– UPS status, Load level, Battery level, Input/Output/battery info, Discharge time and Fault indicators

Backup Time:
– 1350w up to 2:30m
– 1013w up to 5:30m
– 675w up to 9:30m
– 338w up to 22m

Protection:
– 105% < Overload AC <110% Overload Warning UPS Only
– 110% < Overload AC <130% Overload Warning UPS transfers to ByPass after 1 minutes
– Overload AC >130% Overload Warning UPS transfers to ByPass after 3 seconds
– 105% < Overload Battery <110% Overload Warning UPS
– 110% < Overload Battery <130% Overload Warning UPS shut down after 1 minute
– Overload AC >130% Overload Warning shut down after 3 seconds
– 110% < ByPass <120% Overload Warning UPS shut down after 30 minutes
– 120% < ByPass <130% Overload Warning UPS shut down after 10 minutes
– ByPass >130% Overload Warning UPS shut down after 1 minute
– Overload Inverter (>100%)
– Short Circuit INV: Electric Circuit
– Short Circuit AC: ICB & Electric Circuit
– Battery Over-drain Two stages: Controlled Battery Low Warning & Cut Off
– High Surge Level Immunity (>7KV)
Advanced: Fan detect protection and Fan speed control | ECO mode

Connections:
– Output 4xIEC 320 C13 (Battery Power Supplied)
– RS232 and USB(HID)
– Intelligent Slot for SNMP Card
– EPO/ROO
– Battery Bank Connection

Dimensions (WxHxD): 151 x 225 x 394 mm
Net Weight 16,5 Kg (with Battery)
Temperature: 0°-40° C
Humidity: Humidity 20-90% (non-condensing)
