Descrizione

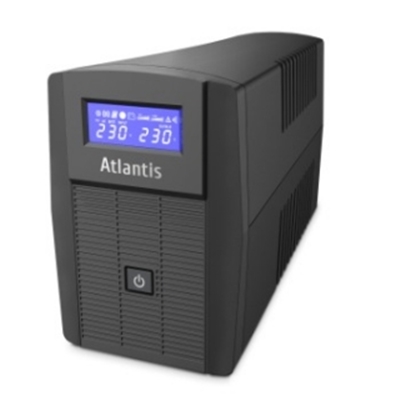

UPS ATLANTIS A03-HP1003 800VA/480W SINEWAVE LINE INTERACTIVE CON ADVANCED AVR BOOST E CUCK-BATT.12V-9AH-DISP.LCD,INTE
Power Rating (VA): 800
Power Rating (W): 480
Input:
– Voltage: 140-300V
– Frequency: 50Hz±5%
Output:
– Voltage: 203-262 [AC/AVR] / 230V(±10%) [Battery]
– Frequency: 50Hz (±1%)
– Advanced AVR: Built-in (2 Boost, 1 Buck)
– Waveform: Pure SineWave
Transfer: 4 ms typical, max 10ms
Efficiency: Total Efficiency Over 85%
Battery:
– Voltage: 12VDC
– Capacity: 12V/9.0Ah
– Quantity: 1
– Recharge Time: 4 hours to (90%)
– Type: Sealed Maintenance Free Lead Acid VRLA Type
Indicators LCD Display:
– Utility Normal, Backup, Battery Load, Input Voltage, Output Voltage,
– Load and Battery / Fault conditions
Protection:
– Overload AC (beep twice a sec)
– Overload Inverter (beep twice a sec)
– Short Circuit INV ICB & Electric Circuit
– Short Circuit AC Electric Circuit
– Battery Over-drain Two stages: Controlled Battery Low Warning & Cut Off
– Spike Suppression
– Noise Suppression (Fanless)
Alarm:
– Battery Mode (sound every 30 seconds)
– Low Battery (sound every 2 seconds)
– OverLoad (sound every 0.5 seconds)
– Battery Replacement Alarm (sound every 2 seconds)
– Fault (continuously sounding)

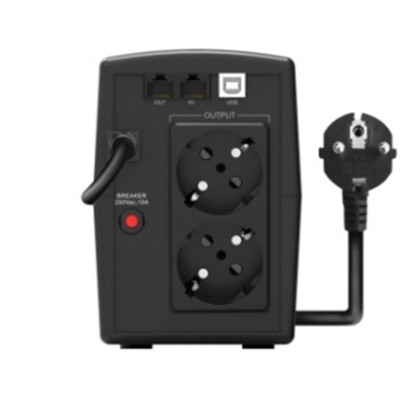

Connections:
– Output 2xSchuko
– Computer USB (HID)
– RJ45/11
Noise level: Less than 40dB
Dimensions (WxHxD): 96 x 138 x 286 mm
Net Weight 4,5 Kg (with Battery)
Temperature: 0°-40° C
Humidity: 0-95% (non-condensing)
