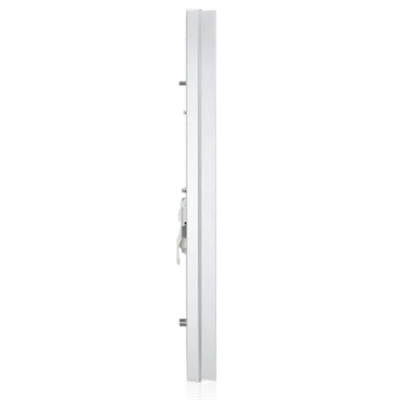

ANTENNA UBIQUITI AM-5AC21-60 AIRMAX SECTOR 5GHZ 60° – 21DBI PER R5AC-LITE

Descrizione

ANTENNA UBIQUITI AM-5AC21-60 AIRMAX SECTOR 5GHZ 60° – 21DBI PER R5AC-LITE
Dimensions (mm): 750 x 173 x 78
Weight: 4.8 kg
Frequency Range: 5.10 – 5.85 GHz
Gain: 21 dBi
HPOL Beamwidth: 60° (6 dBi)
VPOL Beamwidth: 60° (6 dBi)
Electrical Beamwidth: 4°
Electrical Downtilt: 2°
Max. VSWR: 1.5:1
Wind Survivability: 200 km/h (125 mph)
Wind Loading: 391 N @ 200 km/h (88 lbf @ 125 mph)
Polarization: Dual-Linear
Cross-pol Isolation: 25 dB Min.
ETSI Specification: EN 302 326 DN2
Mounting: Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
