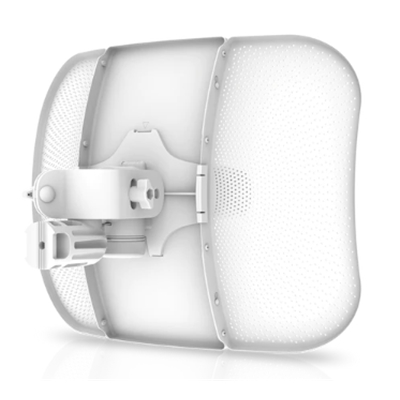

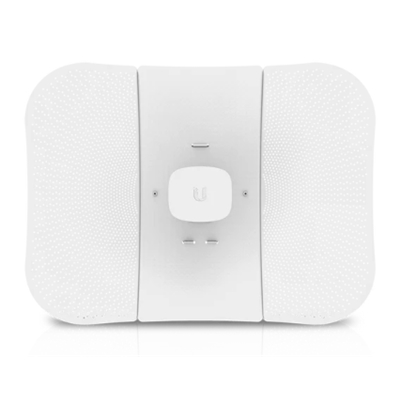

ANTENNA UBIQUITI LBE-5AC-GEN2 5GHZ LITEBEAM AC GEN2- AIRMAX – AC 23DBI-

Descrizione

ANTENNA UBIQUITI LBE-5AC-GEN2 5GHZ LITEBEAM AC GEN2- AIRMAX – AC 23DBI-

Mechanical
Dimensions: 358 x 271.95 x 272.5 mm (14.1 x 10.7 x 10.73″)
Weight:
– Without Mount: 800 g (1.76 lb)
– With Mount 980 g (2.16 lb)
Wind Survivability: 200 km/h (125 mph)
Wind Loading: 275 N at 200 km/h (61.8 lbf at 125 mph)

Hardware
Networking Interface: (1) 10/100/1000 Ethernet Port
Gain: 23 dBi
Max. Power Output: 25 dBm
Max. Power Consumption: 7W
Power Supply: 24V, 0.3A Gigabit PoE Adapter (Included)
Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
Operating Temperature: -40 to 70° C (-40 to 158° F)
Operating Humidity: 5 to 95% Noncondensing
Certifications: CE, FCC, IC

Operating Frequency (MHz)
Worldwide: 5150-5875
USA:
– U-NII-1: 5150-5250
– U-NII-2A: 5250-5350
– U-NII-2C: 5240-5725
– U-NII-3: 5725-5850

Management Radio (MHz)
Worldwide: 2412 – 2472
US/CA: 2412 – 2462
