Descrizione
WIRELESS N ROUTER 450M TP-LINK TL-WR940N 802.11NGB 4P 10/100M – 3ANT. FISSE -GARANZIA 3 ANNI-
WIRELESS
Standards:
– Wi-Fi 4
– IEEE 802.11n/b/g 2.4 GHz
WiFi Speeds:
– N450

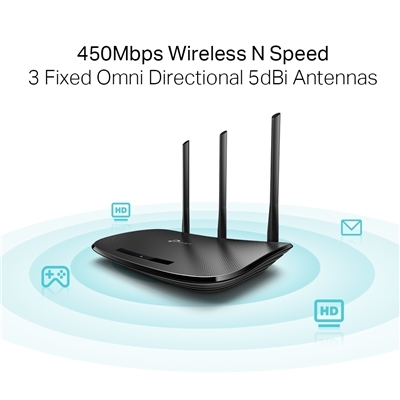

– 2.4 GHz: 450 Mbps (802.11n)
WiFi Range:
– 2 Bedroom Houses
– 3× Fixed Antennas
– Multiple antennas form a signal-boosting array to cover more directions and large areas
WiFi Capacity: Legacy
Working Modes:
– Router Mode
– Access Point Mode
– Range Extender Mode
HARDWARE
Processor: Single-Core CPU

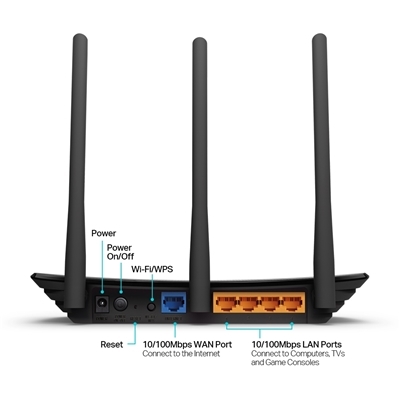

Ethernet Ports:
– 1× 10/100 Mbps WAN Port
– 4× 10/100 Mbps LAN Ports
Buttons:
– WPS/Wi-Fi Button
– Power On/Off Button
– Reset Button
Power: 9 V ⎓ 0.6 A
SICUREZZA
WiFi Encryption:
– WEP
– WPA
– WPA2
– WPA/WPA2-Enterprise (802.1x)
Network Security:
– SPI Firewall
– Access Control
– IP & MAC Binding
– Application Layer Gateway
Guest Network: 1× 2.4 GHz Guest Network
SOFTWARE
Protocols:
– IPv4
– IPv6
Parental Controls:
– URL Filtering
– Time Controls
WAN Types:
– Dynamic IP
– Static IP
– PPPoE
– PPTP
– L2TP
Quality of Service: QoS by Device
NAT Forwarding:
– VIrtual Server
– Port Forwarding
– Port Triggering
– DMZ
– UPnP
IPTV:
– IGMP Proxy
– IGMP Snooping
DHCP:
– Address Reservation
– DHCP Client List
– Server
DDNS:
– NO-IP
– Comex
– DynDNS
Management:
– Tether App
– Webpage
PHYSICAL
Dimensions (W×D×H): 9.1 × 5.7 × 1.4 in (230 × 144 × 35mm)
Package Contents:
– Wi-Fi Router TL-WR940N
– Power Adapter
– RJ45 Ethernet Cable
– Quick Installation Guide
OTHER
System Requirements:
– Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
– Cable or DSL Modem (if needed)
– Subscription with an internet service provider (for internet access)
Certifications: FCC, CE, RoHS
Environment:
– Operating Temperature: 0℃~40℃ (32℉ ~104℉)
– Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
– Operating Humidity: 10%~90% non-condensing
– Storage Humidity: 5%~90% non-condensing
TEST DATA
WiFi Transmission Power:
– CE: <20dBm(2.4GHz)
– FCC: <30dBm
WiFi Reception Sensitivity:
– 450M: -68dBm @10% PER
– 216M: -70dBm @10% PER
– 130M: -78dBm @10% PER
– 54M: -74dBm @10% PER
– 11M: -85dBm @8% PER
– 6M: -88dBm @10% PER
– 1M: -93dBm @8% PER
