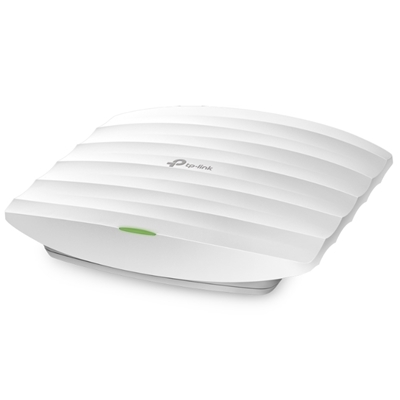

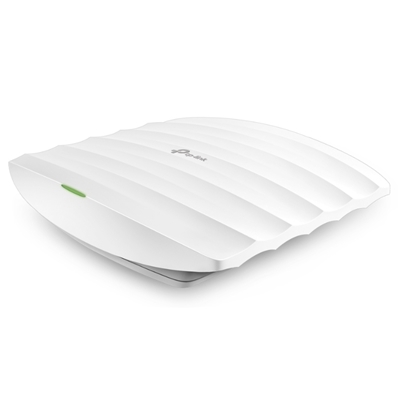

WIRELESS N ACCESS POINT 300M TP-LINK EAP115 1P 10/100 LAN,802.3AF POE, MULTI-SSID, 2 ANTENNE INTERNE

Descrizione

WIRELESS N ACCESS POINT 300M TP-LINK EAP115 1P 10/100 LAN,802.3AF POE, MULTI-SSID, 2 ANTENNE INTERNE

CARATTERISTICHE HARDWARE
Interfaccia: Fast Ethernet (RJ-45) Port *1 （Support IEEE802.3af PoE）
Tasto: Reset
Alimentazione: 802.3af PoE o alimentazione esterna 9VDC/0.6A
Consumo energetico: 2.8W
Dimensions: 189.4 × 172.3 × 29.5mm
Tipo di antenna: Internal 2* 4dBi Omni
Tipo di montaggio: Montaggio a soffitto/parete (Kit inclusi)

CARATTERISTICHE WIRELESS
Standard wireless: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequenza: 2.4-2.4835GHz
Signal rate:
– 11n: Up to 300Mbps(dynamic)
– 11g: Up to 54Mbps(dynamic)
– 11b: Up to 11Mbps(dynamic)
Sensibilità di ricezione:
– 300M: -71dBm @10% PER
– 150M: -75dBm @10% PER
– 54M: -78dBm @10% PER
– 11M: -93dBm @8% PER
– 6M: -92dBm @10% PER
– 1M: -96dBm @8% PER
Funzionalità wireless:
– Multiple SSIDs (Up to 8 SSIDs)
– Enable/Disable Wireless Radio
– Automatic Channel Assignment
– Transmit Power Control （Adjust Transmit Power on dBm）
– QoS(WMM)
– Rate Limit
– Reboot Schedule
– Wireless Schedule
– Wireless Statistics based on SSID/AP/Client
Sicurezza wireless:
– Captive Portal Authentication
– Access Control
– Wireless Mac Address Filtering
– Wireless Isolation Between Clients
– SSID to VLAN Mapping
– Rogue AP Detection
– 802.1X Support
64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK
Potenza di trasmissione:
– CE: ≤19dBm
– FCC: ≤26dBm

GESTIONE
Omada App: Yes
Centralized Management:
• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access: Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Avvisi e-mail: Yes
LED ON/OFF: Yes
Management MAC Access Control: Yes
SNMP: v1,v2c
Log di sistema locale e remoto: Local/Remote Syslog
SSH: Yes
Gestione web-based: HTTP/HTTPS
Management VLAN: Yes

ALTRO
Certificazione: CE, FCC, RoHS
Contenuto della confezione:
– 300Mbps Wireless N Ceiling Mount Access Point EAP115
– Adattatore di alimentazione
– Kit di montaggio
– Guida all’installazione
Requisiti di sistema: Microsoft Windows 10/8/7/Vista/XP
Ambiente:
– Operating Temperature: 0℃~40℃ (32℉~104℉)
– Storage Temperature: -40℃~70℃ (-40℉~158℉)
– Operating Humidity: 10%~90% non-condensing
– Storage Humidity: 5%~90% non-condensing
