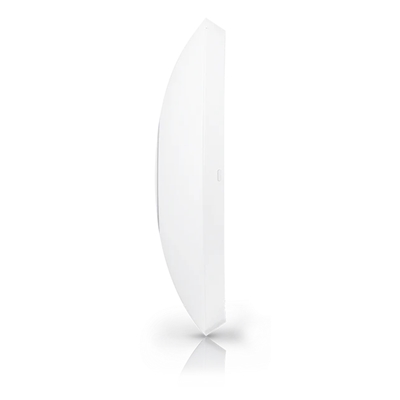

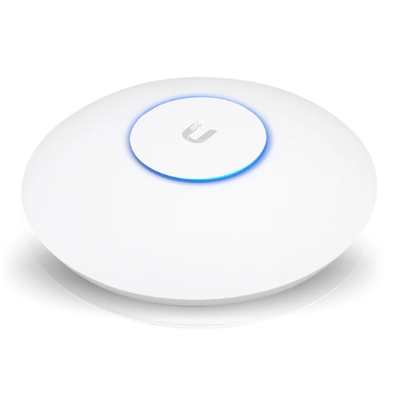

WIRELESS ACCESS POINT UBIQUITI UNIFI UAP-AC-HD HIGH DENSITY DUALBAND 2.4GHZ/5GHZ802.11A/B/G/N/AC/AC-WAVE2

Descrizione

WIRELESS ACCESS POINT UBIQUITI UNIFI UAP-AC-HD HIGH DENSITY DUALBAND 2.4GHZ/5GHZ802.11A/B/G/N/AC/AC-WAVE2

Mechanical
Dimensions: 220 x 220 x 48.1 mm
Weight: Without Mounting Kit: 700 g (24.7 oz), With Mounting Kit: 830 g (29.3 oz)

Hardware
Networking Interface: (2) 10/100/1000 Ethernet Ports
Ports: (2) Ethernet RJ45, (1) USB Type C
Button: Reset
Antennas: (2) 2.4G internal single band antennas, dual polarity – (2) 5G internal single band antennas, dual polarity
Power Method: PoE+
Power Supply: 48VDC, 0.5A Gigabit PoE Adapter
Maximum Power Consumption: 17W
Supported Voltage Range: 44 to 57VDC
Max. TX Power: 25 dBm
Mounting: Wall/Ceiling (Kits Included)
Operating Temperature: -10 to 70° C (14 to 158° F)
Operating Humidity: 5 to 95% Noncondensing
Certifications: CE, FCC, IC

Software
WiFi Standards: 802.11a/b/g/n/ac/ac-Wave2
Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
BSSID: 4 Per Radio
VLAN: 802.1Q
Advanced QoS: Per-User Rate Limiting
Power Save: Supported
Guest Traffic Isolation: Supported
WMM: Supported
Concurrent Clients: 500+

Supported Data Rates (Mbps)
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: 6.5 Mbps to 450 Mbps (MCS0 – MCS23, HT 20/40)
802.11ac: 6.5 Mbps to 1.7Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80)
