Descrizione

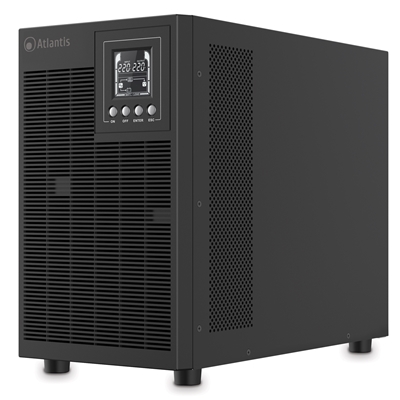

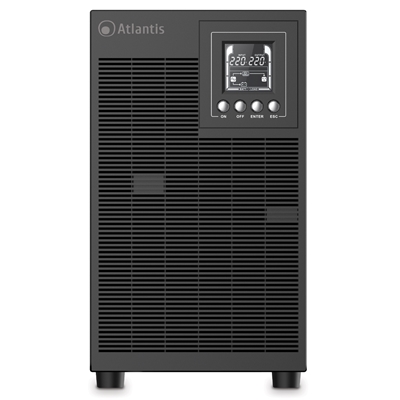

UPS ATLANTIS A03-OP3002XLN 3000VA/2100W DOPPIA CONV.,ULTRA LOW NOISE,SMART BATT.MANAG.INTERFACCIA USB/EPO/RS232 -6 BATT. 12V/9A
Power Rating (VA)
3000
Power Rating (W)
2100
Input
80VAC-300VAC (load <=30%±5%)
140VAC-300VAC (load <=60%±5%)
160VAC-300VAC (load <=80%±5%)
190VAC-300VAC (load <=100%±5%)
Frequency Range
40Hz to 70Hz
Power Factor
>0,99 (Normal Voltage)
Output
Voltage: 208/220/230/240VAC
AC Voltage Regulation: ±1%
Frequency Range: 50Hz (±0.5%) or 60Hz (±0.5%)
Waveform: Pure SineWave
Crest Ratio Current 3:1 (Max)
Harmonic Distortion (THDU): min 3% THD (liner Load) / min 5% THD (Non liner Load)
Transfer
AC->Battery: Zero
INV->ByPass: Less than 4ms (typical)
WaveForm (Batt. Mode)
Pure Sinewave
Efficiency
AC Mode: 91%
Battery: 88%
ECO: 96%
Battery
Voltage: 72VDC
Capacity: 12V/9.0Ah
Quantity: 6
Recharge Time: 4 hours to (90%)
Type: Sealed Maintenance Free Lead Acid VRLA Type
Design: Swappable battery design
Charging Voltage: 82,1VDC ±1%
Charging Current: 1.5A Max
Indicators (display LCD)
UPS status, Load level, Battery level, Input / Output / Battery info, Discharge time and Fault indicators
Protection
100% < Overload AC < 110% Overload Warning UPS transfers to ByPass after 10 minutes
110% < Overload AC < 130% Overload Warning UPS transfers to ByPass after 1 minute
Overload AC >130% Overload Warning UPS transfers to ByPass after 3 seconds
100% < Overload Battery < 110% Overload Warning UPS shut down after 1 minute after
110% < Overload Battery < 130% Overload Warning UPS shut down 30 seconds
Overload AC >130% Overload Warning shut down after 3 seconds
100% < ByPass < 130% Overload Warning UPS warning only
ByPass >130% Overload Warning UPS shut down after 1 minute
Overload Inverter (>100%)
Short Circuit INV: Electric Circuit
Short Circuit AC: ICB & Electric Circuit
Battery Over-drain Two stages: Controlled Battery Low Warning & Cut Off
High Surge Level Immunity(>7KV)
Advanced
Fan detect protection and Fan speed control
ECO mode
Connections
Output 4x IEC 320 C13 (Battery Power Supplied)
1 x Terminal Block
RS232 and USB(HID)
Intelligent Slot for SNMP Card
EPO
Backup Time (min)
2100w up to 2:30m
1575w up to 6:30m
1050w up to 12m
525w up to 25m
Dimensions (WxHxD)
196 x 342 x 412 mm
Weight
Net Weight 23,85 Kg (with battery)
Temperature
Temperature: 0°-40° C
Humidity: Humidity 20-90% (non-condensing)
Noise level
ULTRA LOW NOISE
1m Front: Less then 35.1 dBA (Line Mode, full Load)
1m Left Side: Less then 37.6 dBA (Line Mode, full Load)
1m Right Side: Less then 31.3 dBA (Line Mode, full Load)
Certification
CE (EMC, Safety)
