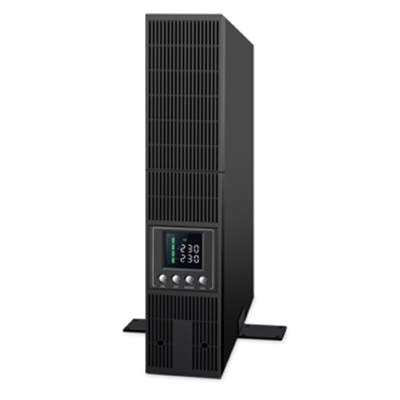

UPS ATLANTIS A03-OP2002-RC 2000VA/1350W RACK 2U -DOPPIA CONVERS.SMART BATT.MANAG.INTERF.EPO-3 BATT.12V/9A (SOST.A03-O FINO:30/04

Descrizione

UPS ATLANTIS A03-OP2002-RC 2000VA/1350W RACK 2U -DOPPIA CONVERS.SMART BATT.MANAG.INTERF.EPO-3 BATT.12V/9A (SOST.A03-O

Power Rating (VA): 2000
Power Rating (W): 1350

Input (Low Line Transfer):
– 80VAC-300VAC (load <=30%±5%)
– 120VAC-300VAC (load <=60%±5%)
– 140VAC-300VAC (load <=80%±5%)
– 160VAC-300VAC (load <=100%±5%)
Frequency Range: 40Hz to 70Hz
Power Factor: >0,99 (Normal Voltage)

Output
– Voltage: 208/220/230/240VAC
– AC Voltage Regulation: ±1%
– Frequency Range: 50Hz (±0.5%) or 60Hz (±0.5%)
– Waveform: Pure SineWave
– Crest Ratio: 3:1 (Max)
– Harmonic Distortion: <3% THD (liner Load) | <5% THD (Non liner Load)

Transfer:
– AC->Battery: Zero
– INV->ByPass: Less than 4ms (typical)
WaveForm (Batt. Mode): Pure Sinewave

Efficiency:
– AC Mode = 89%
– Battery = 85%
– ECO = 97%

Battery
– Voltage: 36VDC
– Capacity: 12V/9.0Ah
– Quantity: 3
– Recharge Time: 4 hours to (90%)
– Type: Sealed Maintenance Free Lead Acid VRLA Type
– Design: Easy-swappable battery design
– Charging Voltage: 41,1VDC ±1%
– Charging I: 1.0A Max

Indicators LCD Display
– UPS status | Load level | Battery level | Input/Output/battery info | Discharge time and Fault indicators

Backup Times:
– 1350w up to 2:30m
– 1013w up to 5:30m
– 675w up to 9 m
– 338w up to 22m

Protection:
– 105% < Overload AC <110% Overload Warning Only
– 110% < Overload AC <130% Overload Warning UPS transfers to ByPass after 1 minutes
– Overload AC >130% Overload Warning UPS transfers to ByPass after 3 seconds
– 105% < Overload Battery <110% Overload Warning Only
– 110% < Overload Battery <130% Overload Warning UPS shut down after 1 minute
– Overload AC >130% Overload Warning shut down after 3 seconds
– 110% < ByPass <120% Overload Warning UPS shut down after 30 minutes
– 120% < ByPass <130% Overload Warning UPS shut down after 10 minutes
– ByPass >130% Overload Warning UPS shut down after  1 minute
– Overload Inverter (>100%)
– Short Circuit INV: Electric Circuit
– Short Circuit AC: ICB & Electric Circuit
– Battery Over-drain Two stages: Controlled Battery Low Warning & Cut Off
– High Surge Level Immunity (>7KV)

Advanced:
– Fan detect protection and Fan speed control
– ECO mode

Connections
– Output 8xIEC 320 C13 (Battery Power Supplied)
– RS232 and USB (HID)
– Intelligent Slot for SNMP Card
– EPO / ROO

Dimensions (WxHxD): 438 x 88 x 450 mm
Net Weight 14,0 Kg (with Battery)
Temperature: 0°-40° C
Humidity: 20-90% (non-condensing)
