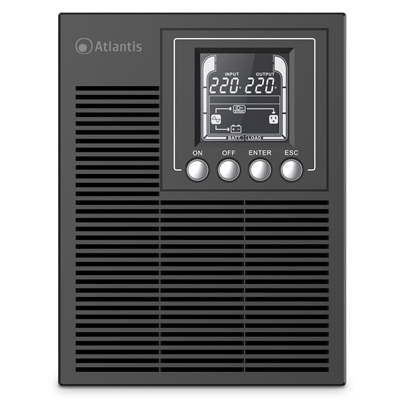

UPS ATLANTIS A03-OP1002XLN 1000VA/700W DOPPIA CONV.,ULTRA LOW NOISE,SMART BATT.MANAG.INTERFACCIA USB/EPO/RS232 -2 BATT. 12V/9A

Descrizione

UPS ATLANTIS A03-OP1002XLN 1000VA/700W DOPPIA CONV.,ULTRA LOW NOISE,SMART BATT.MANAG.INTERFACCIA USB/EPO/RS232 -2 BATT. 12V/9A

Power Rating (VA)
1000

Power Rating (W)
700

Input
80VAC-300VAC (load <=30%±5%)
120VAC-300VAC (load <=60%±5%)
140VAC-300VAC (load <=80%±5%)
160VAC-300VAC (load <=100%±5%)

Frequency Range
40Hz to 70Hz

Power Factor
>0,99 (Normal Voltage)

Output
Voltage: 208/220/230/240VAC
AC Voltage Regulation: ±1%
Frequency Range: 50Hz (±0.5%) or 60Hz (±0.5%)
Waveform: Pure SineWave
Crest Ratio Current 3:1 (Max)
Harmonic Distortion (THDU): min 3% THD (liner Load) / min 5% THD (Non liner Load)

Transfer
AC->Battery: Zero
INV->ByPass: Less than 4ms (typical)

WaveForm (Batt. Mode)
Pure Sinewave

Efficiency
AC Mode: 88%
Battery: 85%
ECO: 96%

Battery
Voltage: 24VDC
Capacity: 12V/9.0Ah
Quantity: 2
Recharge Time: 4 hours to (90%)
Type: Sealed Maintenance Free Lead Acid VRLA Type
Design: Swappable battery design
Charging Voltage: 24,4VDC ±1%
Charging Current: 1.5A Max

Indicators (display LCD)
UPS status, Load level, Battery level, Input / Output / Battery info, Discharge time and Fault indicators

Protection
100% 110% Overload AC >130%  Overload Warning UPS transfers to ByPass after 3 seconds
100% 110% Overload AC >130%  Overload Warning shut down after 3 seconds
100% ByPass >130% Overload Warning UPS shut down after 1 minute
Overload Inverter (>100%)
Short Circuit INV: Electric Circuit
Short Circuit AC: ICB & Electric Circuit
Battery Over-drain Two stages: Controlled Battery Low Warning & Cut Off
High Surge Level Immunity(>7KV)

Advanced
Fan detect protection and Fan speed control
ECO mode

Connections
Output 1x IEC 320 C13 (Battery Power Supplied)
2 x Schuko
RS232 and USB(HID)
Intelligent Slot for SNMP Card
EPO

Backup Time (min)
700w up to 2:30m
525w up to 6:30m
350w up to 12m
175w up to 30m

Dimensions (WxHxD)
140 x 191 x 324 mm

Weight
Net Weight 10,1 Kg (with battery)

Temperature
Temperature: 0°-40° C
Humidity: Humidity 20-90% (non-condensing)

Noise level
ULTRA LOW NOISE
1m Front: Less then 23.6 dBA (Line Mode, full Load)
1m Left Side: Less then 26.5 dBA (Line Mode, full Load)
1m Right Side: Less then 28.0 dBA (Line Mode, full Load)

Certification
CE (EMC, Safety)
