Descrizione

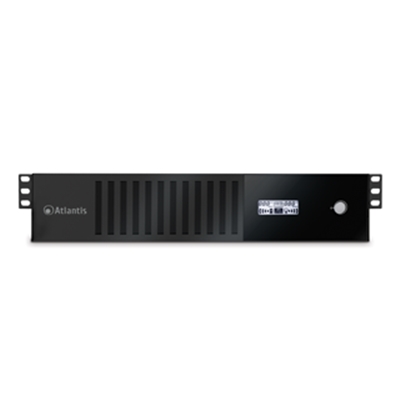

UPS ATLANTIS A03-HP2201-RC 2200VA/1320W SINEWAVE CON AVR-RACK 2U-DISPLAY LCD-INT. USB-2 BATT. 12V/10A -GARANZIA 2 ANNI
Power Rating (VA): 2200
Power Rating (W): 1320
Input:
– Voltage: 170-280VAC
– Frequency: 50Hz±5%
Output
– Voltage: 230VAC(±10%) [AC] / 230VAC(±7%) [INV]
– Frequency: 50Hz (±1%)
– AVR: Built-in
– Waveform: Pure SineWave
Transfer: 4ms typical, 10ms max
Efficiency:
– Line Mode: >95% (50%<load<100%)
– AVR: >88% (50%<load<100%)
– Battery Mode: >70% (25%<load<50%)
Battery
– Voltage: 24VDC
– Capacity: 12V/10.0Ah
– Quantity: 2
– Recharge Time: 8 hours to (90%)
– Type: Sealed Maintenance Free Lead Acid VRLA Type
– Design: Easy-swappable battery design
– Charging Voltage: 27,4VDC ±1%
– Charging: 1.0A Max
Indicators LCD Display
– Input Voltage, Output Voltage, Load Level Indicator, Overload, Utility Normal, Backup, Battery Low and Battery Fault conditions
Protection:
– Overload AC Buzzer continuously alarms then UPS shuts down after 5 minutes (>110%±10%)
– Overload Inverter UPS shuts down immediately and go to Fault (>120%±10%)
– Overload Battery Buzzer continuously alarms then UPS shuts down after 5 seconds (>110%±10%)
– Overload Battery UPS shuts down immediately (>120%±10%)
– Short Circuit INV (ICB) & Electric Circuit
– Short Circuit AC Electric Circuit
– Battery Over-drain Two stages: Controlled Battery Low Warning & Cut Off
Alarm:
– Battery Mode (sound every 10 seconds)
– Low Battery (sound every seconds)
– OverLoad (sound every 0.5 seconds)
– Battery Replacement Alarm
– Fault (sounding)
Connections:
– Output 6xIEC 320 C13 (Battery Power Supplied)
– USB
– Intelligent Slot for SNMP Card (A03-SNMP1-IN)
Noise Level: Less than 45dB (with FAN)
Backup Time (min):
– 100% (1320W) up to 1:00m
– 80% (1056W) up to 1:00m
– 60% (792W) up to 3:00m
– 40% (528W) up to 8:00m
Dimensions (WxHxD): 438 x 88 (2U) x 310 mm
Weight 14,9 Kg (with battery)
Temperature: 0°-40° C
Humidity: 0-90% (non-condensing)
