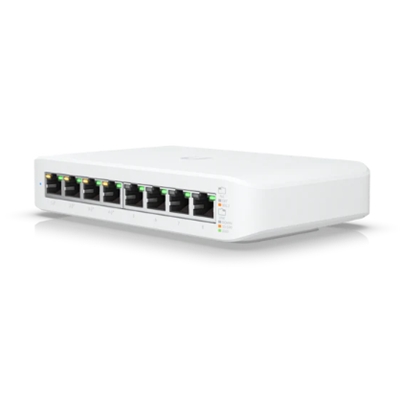

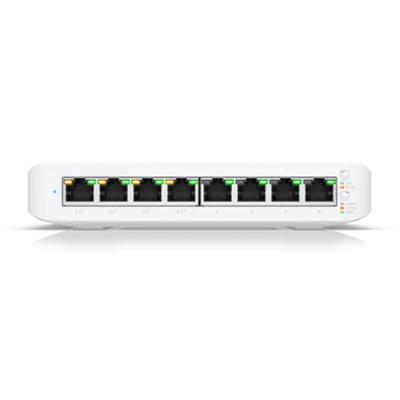

SWITCH 8P POE LAN GIGABIT LITE UBIQUITI USW-LITE-8-POE GEN2 52W – 4P GBE 802.3AT POE+-4P GBE RJ45

Descrizione

SWITCH 8P POE LAN GIGABIT LITE UBIQUITI USW-LITE-8-POE GEN2 52W – 4P GBE 802.3AT POE+-4P GBE RJ45

Mechanical
Dimensions: 99.6 x 163.7 x 31.7 mm (3.92 x 6.44 x 1.25″)
Weight: 295 g (10.4 oz)

Hardware
Total non-blocking line rate: 8 Gbps
Max. power consumption: 8W
Power method: 54V DC, 1.1A power adapter
Power supply: External 54V/60W power adapter
Supported voltage range: 50—57V DC
Networking interface: (8) 10/100/1000 MbE RJ45
PoEiInterface: (4) PoE/PoE+ (Pins 1, 2+; 3, 6-)
Management interface: Ethernet In-Band
Max. PoE+ wattage per port by PSE: 30W
PoE budget: 52W
Modes: SMB Layer 2 PoE GbE switch
Operating temperature: -15 to 40° C (5 to 104° F)
Operating humidity: 10 to 90% noncondensing
Certifications: CE, FCC, IC

LEDs
System:
– (1) Power: blue/white
– Flashing white: bootup in progress
– Flashing blue: firmware upgrading
– Steady white: factory defaults, awaiting adoption
– Steady blue: device is adopted
Ethernet:
– Green: 1G
– Amber: 10/100 Mbps
PoE: Amber: PoE/PoE+
