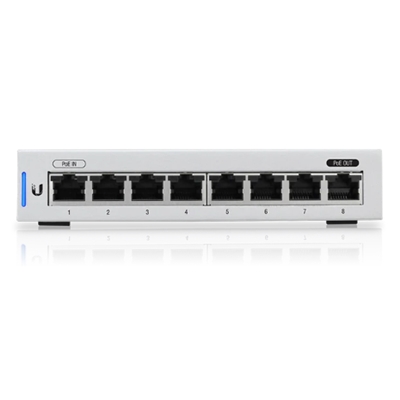

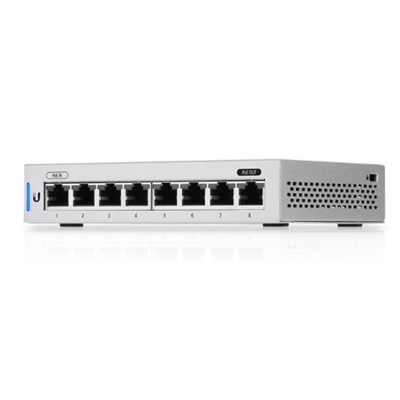

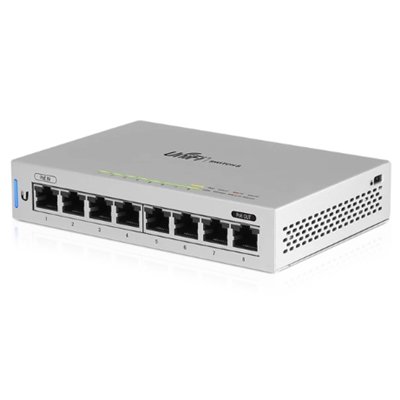

SWITCH 8P LAN GIGABIT UBIQUITI UNIFI US-8-5 1P POE PASSTHROUGH (5PCS PACK)
Dimensions: 148 x 99.5 x 30.7 mm (5.83 x 3.92 x 1.21″)
Weight: 432 g (15.24 oz)
Networking Interfaces: (8) 10/100/1000 Mbps RJ45 Ports
PoE In (Port 1):
– PoE Mode 1: PoE/PoE+ (Pins 1, 2+; 3, 6-)
– PoE Mode 2: Passive 48V (Pins 4, 5+; 7, 😎
PoE Out (Port 8):
– PoE Mode 1: 48V (Pins 1, 2+; 3, 6-)
– PoE Mode 2: Passive 48V (2-Pair Pins 4, 5+; 7, 😎
– DC Input Mode: 48VDC (Pins 1, 2+; 3, 6-)
Power Method:
– (1) DC 48V, Max. 1.25A
– (1) PoE Input, PoE/PoE+ (Pins 1, 2+; 3, 6-)
Power Supply: External AC/DC Adapter: 48V, 0.5A
Max. Power Consumption: 12W (Excluding PoE Output)
Max. PoE Wattage per Port:
– PoE Mode 1: 12W @ PoE+
– PoE Mode 2: 12W @ 48V
– DC Input Mode: 12W @ 48V
Passive PoE Voltage Range: Depends on Power Source
Line Rate: 8 Gbps, Non-Blocking
LEDs:
– System: Status
– RJ45 Data Ports: PoE; Link/Speed/Activity
ESD/EMP Protection: ± 24kV Air, ± 24kV Contact
Operating Temperature: -5 to 45° C (23 to 113° F)
Operating Humidity: 5 to 95% Noncondensing
Certifications: CE, FCC, IC
