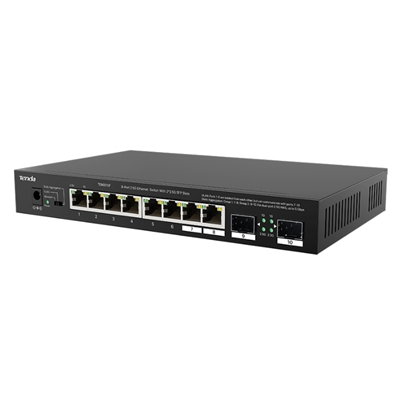

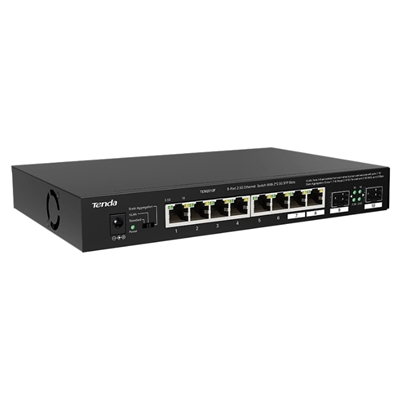

SWITCH 8P ETHERNET 2.5G +2P SFP TENDA TEM2010F

Descrizione

SWITCH 8P ETHERNET 2.5G +2P SFP TENDA TEM2010F

Hardware
Standard di rete: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3bz，IEEE 802.3cb
Indicatore LED:
– Two Link/Act LED indicators for each port
– One Power LED indicator for each device
Interfacce:
– 8 x 100/1000/2500 Mbps Base-TX Ethernet ports
– 2 x 100/1000/2500 Mbps Base-X SFP ports
Trasmissione media:
– Ethernet: CAT3 UTP or better
– Fast Ethernet: CAT5 UTP or better
– Gigabit Ethernet: CAT5e UTP or better
Quantità delle ventole: –
Dimensione: 220mm x 135.6mm x 31.5mm
Materiale: Metal
Livello di protezione:
– Lightning protection for port: 6 kV
– Electrostatic protection:
– Air discharge: ±8 kV
– Contact discharge: ±6 kV
Modalità di inoltro: Store-and-forward
Portata switch: 50Gbps
Velocità di inoltro dei pacchetti: 37.2 Mpps
Buffer: –
Tabella degli indirizzi MAC: 16K
Jambo frame: –
Potenza:
– Input: 100 – 240V AC 50/60Hz
– Output: 12V 2A
Consumo: Max: <24W
Montaggio:
– Desktop mounting: Support
– Wall mounting: Support
– Rack mounting: Not Support
Ambiente:
– Operating temperature: 0°C – 45°C
– Storage temperature: -40°C – 70°C
– Operating humidity: (10% – 90%)RH, non-condensing
– Storage humidity: (5% – 90%)RH, non-condensing
Certificazione: CCC, FCC, CE, RoHS

Software
Protocolli: Auto-learning and Auto-Updating
Apprendimento dell’indirizzo MAC: CDMA/CD
Funzioni:
– 1. Standard: In this mode, all ports can communicate with each other.
– 2. VLAN: Ports 1-6 are isolated from each other, but can communicate with ports 7-10
– 3. Static Aggregation: Group 1: 7-8
– Group 2: 9-10. For dual-port 2.5G NAS, up to 5 Gbps
