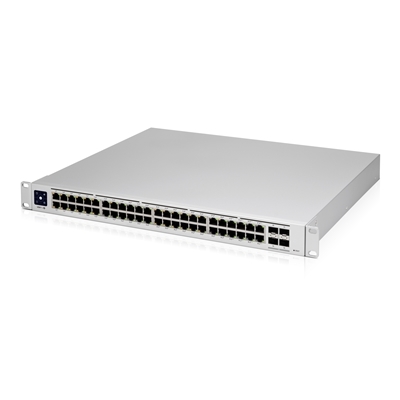

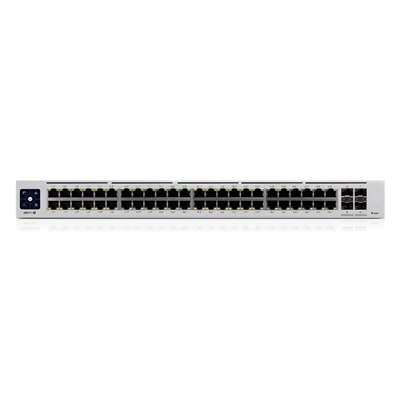

SWITCH 48P POE LAN GIGABIT UBIQUITI USW-PRO-48-POE GEN2 600W CONFIG. CON RIL.AUT. POE+8023AT E POE++802.3BT – 2P SFP+

Descrizione

SWITCH 48P POE LAN GIGABIT UBIQUITI USW-PRO-48-POE GEN2 600W CONFIG. CON RIL.AUT. POE+8023AT E POE++802.3BT – 2P SFP+

Mechanical
Dimensions: 442.4 x 399.6 x 43.7 mm (17.42 x 15.73 x 1.72″)
Weight: Without Brackets: 6.25 kg (13.78 lb), With Brackets: 6.34 kg (13.98 lb)

Hardware
Networking Interface: (48) 10/100/1000 RJ45 Ports, (4) 1/10G SFP+ Ethernet Ports
Management Interface: Ethernet In-Band
Total Non-Blocking Throughput: 88 Gbps
Switching Capacity: 176 Gbps
Forwarding Rate: 130.944 Mpps
Power Method:
– Universal Input: 100-240VAC/50-60 Hz
– USP RPS DC Input: 52VDC, 11.54A; 11.5VDC, 5.22A
Power Supply: AC/DC, Internal, 660W
Supported Voltage Range: 100 to 240VAC
Max. Power Consumption (Excluding PoE Output): 60W
LEDs:
– System: Status
– RJ45 Data Ports: PoE; Speed/Link/Activity
– SFP+ Data Ports: Link/Activity
ESD/EMP Protection:
– Air: ± 16 kV
– Contact: ± 12 kV
Shock and Vibration: ETSI300-019-1.4 Standard
Operating Temperature: -5 to 40° C (23 to 104° F)
Operating Humidity: 10 to 90% Noncondensing
Certifications: CE, FCC, IC

PoE
Total Available PoE: 600W
PoE Interfaces:
– Ports 1-40: PoE/PoE+ (pins 1, 2+; 3, 6-)
– Ports 41-48: 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 😎
Max. PoE Wattage per Port by PSE:
– PoE+: 32W
– PoE++: 64W
Voltage Range PoE Mode: 44-57V
Voltage Range PoE+ Mode: 50-57V
