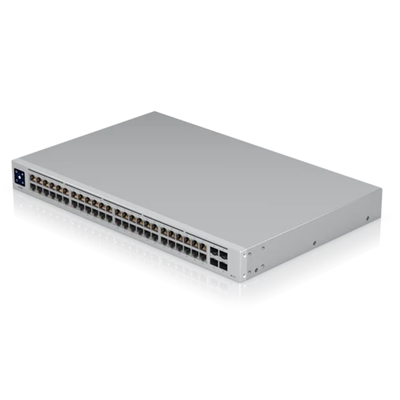

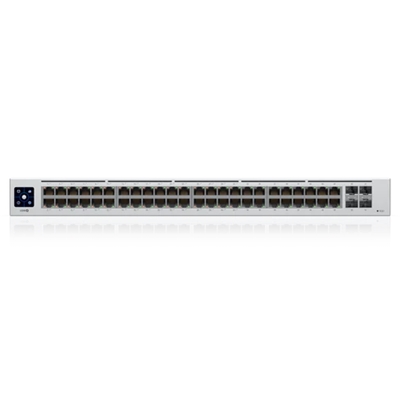

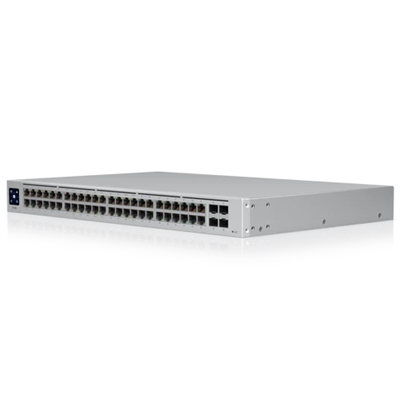

SWITCH 48P POE LAN GIGABIT UBIQUITI USW-48-POE GEN2 210W DI CUI 4P SFP

Descrizione

SWITCH 48P POE LAN GIGABIT UBIQUITI USW-48-POE GEN2 210W DI CUI 4P SFP

Mechanical
Dimensions: 442.4 x 285 x 43.7 mm (17.42 x 11.22 x 1.72″)
Weight: Without Rackmount Brackets: 4.52 kg (9.97 lb), With Rackmount Brackets: 4.61 kg (10.16 lb)

Hardware
Networking Interface: (48) 10/100/1000 RJ45 Ports, (4) 1G SFP Ethernet Ports
Management Interface: Ethernet In-Band
Total Non-Blocking Throughput: 52 Gbps
Switching Capacity: 104 Gbps
Forwarding Rate: 77.38 Mpps
Power Method: 100-240VAC, 50/60 Hz, Universal Input
Power Supply: AC/DC, Internal, 240W
Supported Voltage Range: 100 to 240VAC
Max. Power Consumption
(Excluding PoE Output): 45W
LEDs:
RJ45 Data Ports: PoE; Speed/Link/Activity
SFP Data Ports: Link/Activity
ESD/EMP Protection: Air: ± 16 kV, Contact: ± 12 kV
Shock and Vibration: ETSI300-019-1.4 Standard
Operating Temperature: -5 to 40° C (23 to 104° F)
Operating Humidity: 10 to 90% Noncondensing
Certifications: CE, FCC, IC

PoE
Total Available PoE: 195W
PoE Interfaces Ports 1-32: PoE/PoE+ (Pins 1, 2+; 3, 6-)
Max. PoE Wattage per Port by PSE PoE+: 32W
Voltage Range PoE Mode: 44-57V
Voltage Range PoE+ Mode: 50-57V
