Descrizione

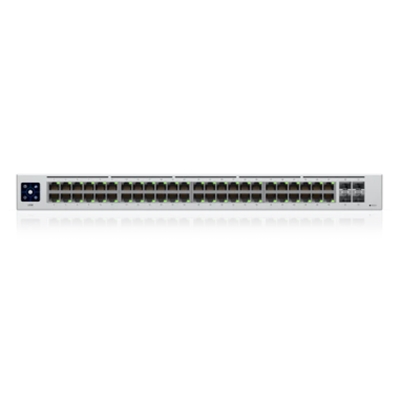

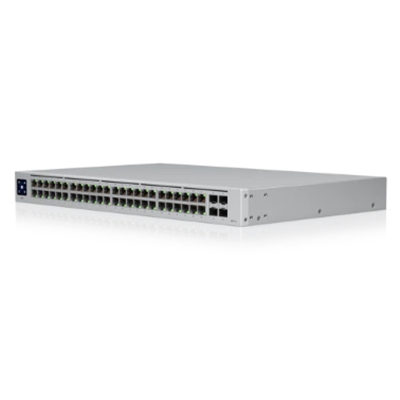

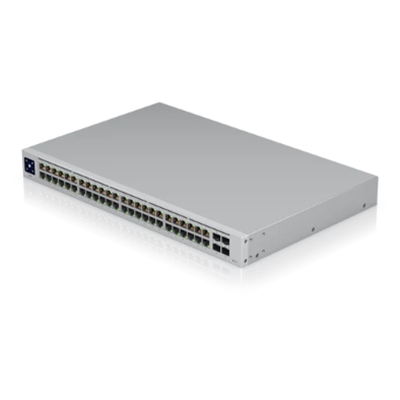

SWITCH 48P LAN GIGABIT UBIQUITI UNIFI US-48 CON SFP (NO POE)
Mechanical
Dimensions: 442.4 x 285 x 43.7 mm (17.42 x 11.22 x 1.72″)
Weight:
– Without Mount: 3.9 kg (8.6 lb)
– With Mount: 3.99 kg (8.8 lb)
Enclosure Characteristics: SGCC Steel
Hardware
Total Non-Blocking Line Rate: 52 Gbps
Max. Power Consumption: 40W
Forwarding Rate: 77.376 Mpps
Power Method: Universal AC Input: 100-240VAC, 50/60 Hz
Power Supply: AC/DC, Internal, 60W
Supported Voltage Range: 100 – 240VAC
Networking Interfaces:
– (48) 10/100/1000 Mbps Ethernet RJ45 Ports
– (4) 1 Gbps SFP Ports
Management Interface: Ethernet In-Band
Modes: SMB Layer 2 Gigabit Ethernet Switch
Operating Temperature: -15 to 40° C (5 to 104° F)
Operating Humidity: 10 – 90% Noncondensing
Certifications: CE, FCC, IC
LEDs
System:
– (1) Bootup Animation: Bootup in Progress
– Firmware Upgrade Icon: Firmware Upgrading
– Steady White: Factory Defaults, Awaiting Adoption
– Steady Blue: Device is Adopted
Ethernet: Green: 1G, Amber: 10/100 Mbps
SFP: Green: 1G
