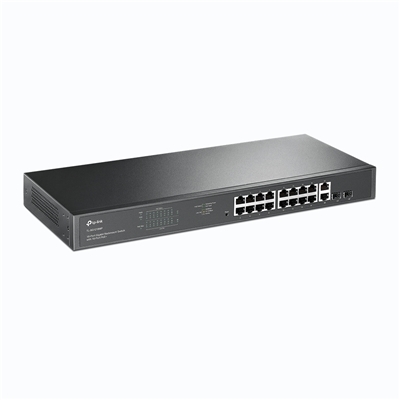

SWITCH 16P GIGABIT POE+ RJ45 TP-LINK TL-SG1218MP 2P GIGABIT NON POE RJ45-2 SLOT GIGABIT COMBO SFP

Descrizione

SWITCH 16P GIGABIT POE+ RJ45 TP-LINK TL-SG1218MP 2P GIGABIT NON POE RJ45-2 SLOT GIGABIT COMBO SFP

CARATTERISTICHE HARDWARE
Standard e protocolli: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
Interfaccia:
• 16× PoE+ gigabit RJ45 ports
• 2× gigabit non-PoE RJ45 ports
• 2× combo gigabit SFP slots
Media:
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-X MMF, SMF
Numero ventole: 2
Physical security lock: Yes
Alimentazione: 100–240 VAC, 50/60 Hz

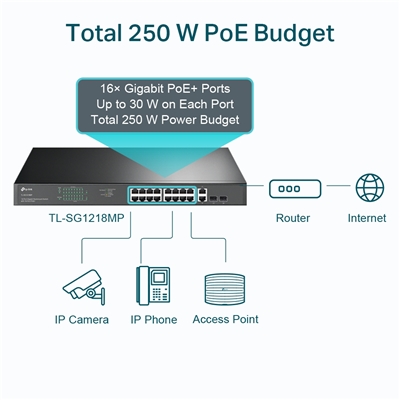

Porte PoE+:
• Standard: 802.3at/802.3af compliant
• PoE Ports: Ports 1–16
• PoE Power Budget: 250 W
Dimensioni ( L x P x A ): 17.3 × 7.1 × 1.73 in (440 × 180 × 44 mm)
Tipo di montaggio: Rack Mountable
Max Power Consumption:
• 21.4 W (220/50 Hz. no PD connected)
• 286.64 W (220/50 Hz. with 250 W PD connected)
Max Heat Dissipation:
• 72.97 BTU/h (no PD connected)
• 977.44 BTU/h (with 250 W PD connected)

PRESTAZIONI
Capacità di switching: 36 Gbps
Packet Forwarding Rate: 26.78 Mbps
Tabella ARP: 8K
Buffer (pacchetti): 4.1 Mbit
Advanced Functions:
• Compatible With IEEE 802.3af/at Compliant PDs
• 802.1p/DHCP QoS
• Mac Address Auto-Learning And Auto-Aging
• IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode
Jumbo frame: 10 KB

ALTRO
Certificazione: CE, FCC, RoHS
Contenuto della confezione:
• TL-SG1218MP
• Installation Guide
• Power Cord
• Rackmount Kit
• Rubber Feet
Ambiente:
• Operating Temperature: 0–50 °C (32–122 °F)
• Storage Temperature: -40–70 °C (-40–158 °F)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
