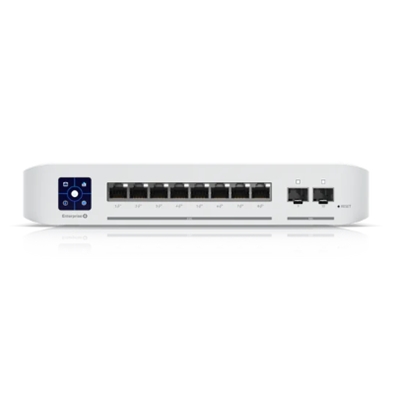

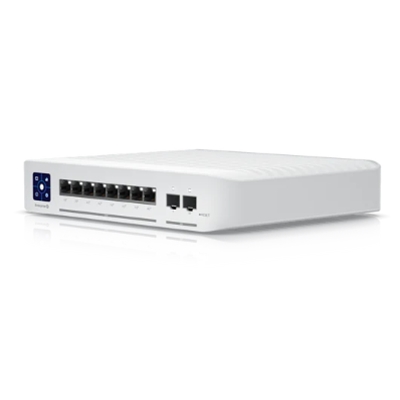

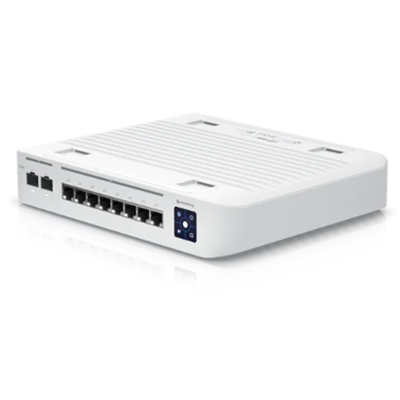

SWITCH 10P UBIQUITI USW-ENTERPRISE-8-POE L3 -8P 2.5GBE 802.3AT POE+ RJ45 + 2P 10G SFP+

Descrizione

SWITCH 10P UBIQUITI USW-ENTERPRISE-8-POE L3 -8P 2.5GBE 802.3AT POE+ RJ45 + 2P 10G SFP+

Mechanical
Dimensions: 200 x 248 x 44 mm (7.9 x 9.8 x 1.7″)
Weight: 2.4 kg (5.29 lb)
Enclosure Materials: Polycarbonate
Mount Material: Polycarbonate

Hardware
Total Non-Blocking Throughput: 40 Gbps
Switching Capacity: 80 Gbps
Forwarding Rate: 59.52 Mpps
Max PoE Power: 120W
Power Method: (1) 100-240VAC, 2A Max., 50/60 Hz, Universal Input
Power Supply: AC/DC, Internal, 150W
Management Interface: Ethernet In-Band
Networking Interfaces: (8) 1/2.5 GbE RJ45
SFP+ Interfaces: (2) 1/10 Gbps SFP+
PoE Interfaces: (8) PoE/PoE+ (Pins 1, 2+; 3, 6-)
Max. PoE+ Wattage per Port by PSE: 32W
Voltage Range PoE Mode: 44 – 57V
Voltage Range PoE+ Mode: 50 – 57V
Services: SMB Layer 3 PoE GbE Switch
LCM Display:
– (1) 1.3″ Touchscreen
– Bootup Animation: Bootup in Progress
– Firmware Upgrade Icon: Firmware Upgrading
– Steady White: Factory Defaults, Awaiting Adoption
– Steady Blue: Device is Adopted
ESD/EMP Protection: Air: ± 16 kV, Contact: ± 12 kV
Operating Temperature: -5 to 45° C (23 to 113° F)
Operating Humidity: 10 to 90% Noncondensing
Certifications: CE, FCC, IC

LEDs
Ethernet: White: Link or Activity
SFP+: White: Link or Activity
