Descrizione

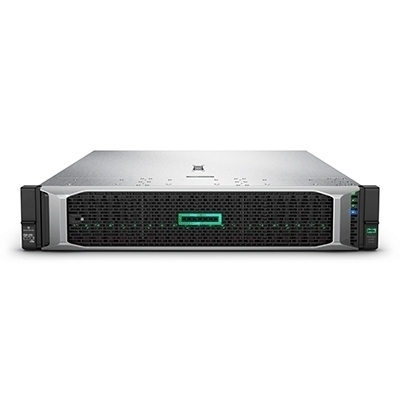

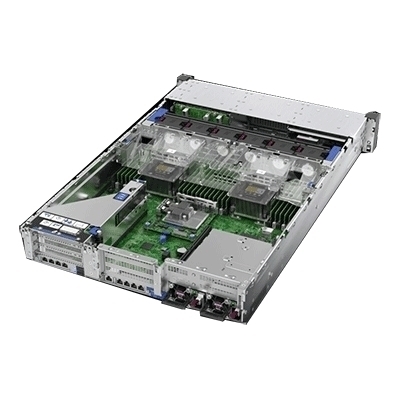

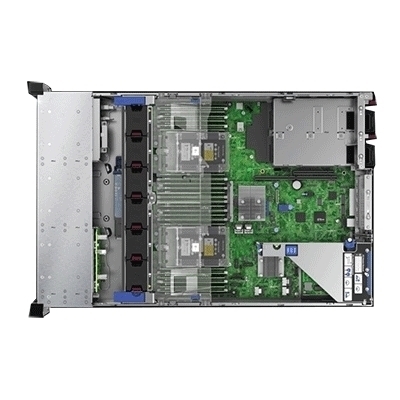

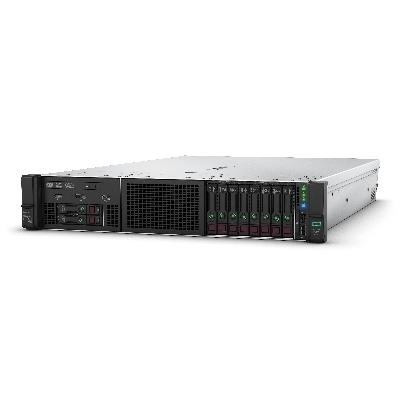

SERVER HPE P56963-B21 DL380 GEN10 RACK 2U XEON 1X4214R 12C 2.4GHZ 32GBDDR4 MR416I-P 8X2.5 NOHDD NO OPTICAL DISK (NOODD) 4X1GB 1X800W 3Y
HPE ProLiant DL380 Gen10 Intel Xeon-S 4214R 12-Core (2.40GHz 16.5MB) 32GB (1 x 32GB) PC4-2933Y RDIMM 8 x Hot Plug 2.5in Small Form Factor SAS/SATA Basic Carrier MR416i-p No Optical 800W 3yr Next Business Day Warranty
Struttura
Rack 2U
Serie
DL380 Gen10
Processore
1 x HPE DL380 Gen10 Intel Xeon-S 4214R 12-Core (2.40GHz 16.5MB L3 Cache) Processor Kit
Numero di processori base
1
Processori Max
2
Cache Totale
16.5Mb
Chipset
Intel C621 Chipset
Memoria RAM base
1X32GB
Memoria Base
32 GB RDIMM Dual Rank 2933 MT/s (1 x 32 GB)
Memoria RAM max.
Tipo: HPE DDR4 SmartMemory, Registered (RDIMM)
DIMM SLots: 24 totali – 12 DIMM slots per processor, 6 channels per processor, 2 DIMMs per channel
Maximum capacity (RDIMM) 1.54 TB 24 x 64 GB RDIMM @ 2933 MT/s
Alloggiamenti RAM (totali/disponibilità)
23/22 con 2 processori installati
Tipo disco fisso
Hot Plug 2.5in Small Form Factor Smart Carrier Hard Disk
8 Bays Disponibili
Capacità Disco
HDD Non Presente
Capacità Massima Storage interno:
Hot Plug SFF SAS 72.0 TB 24+6 x 2.4 TB* (with optional rear SFF drive cage)
Hot Plug SFF SATA 60.0 TB 24+6 x 2 TB (with optional SFF drive cage)
Hot Plug SFF SAS SSD 459 TB 24+6 x 15.3 TB (with optional rear SFF drive cage)
Hot Plug SFF SATA SSD 115.2 TB 24+6 x 3.84 TB (with optional rear SFF drive cage)
Hot Plug SFF NVMe PCIe SSD 153.6 TB 20 x 7.68 TB NVMe
NOTE: 2x m.2 drives are supported on the Primary Riser.
NOTE: uFF drives are also supported.
Controller on board
Storage controller
Tipo
1 x RAID
Tipo interfaccia controller
SAS 12Gb/s
Nome controllore memorie
MegaRAID MR416i-p Broadcom
Qtà canali
16
Dimensione buffer
4 GB
Slot di espansione
1 – PCIe 3.0, X8, X8, Full-height, full-length slot, Proc 1
2 – PCIe 3.0, X16, X16, Full-height, full-length slot, Proc 1
3 – PCIe 3.0, X8, X8, Full-height, half-length slot, Proc 1
NOTE: Bus Width Indicates the number of physical electrical lanes running to the connector.
NOTE: This riser also supports dual m.2 cards.
1 – PCIe 3.0, X8, X8, Full-height, full-length slot, Proc 2
2 – PCIe 3.0, X16, X16, Full-height, full-length slot, Proc 2
3 – PCIe 3.0, X8, X8, Full-height, half-length slot, Proc 2
Networking
Porte Ethernet
4 x 1 Gigabit Ethernet
Controller Ethernet
HPE 331i
Data Link Protocol
1 Gigabit Ethernet
Data Link Protocol
Ethernet,Fast Ethernet,Gigabit Ethernet
Protocollo di gestione remota
SNMP 3,IPMI 2.0,SMASH CLP
Controller gestione a distanza
Integrated Lights-Out 5
Caratteristiche
Wake on LAN (WoL),supporto PXE
Controller gestione a distanza
Integrated Lights-Out 5
Caratteristiche
Wake on LAN (WoL),supporto PXE
Dispositivi
La configurazione non prevede lettore ottico
***** per aggiungere dispositivo ottico necessario anche l’opzione universal Bay Kit 826708-B21
Grafica
Integrated Video Standard
• Video modes up to 1920 x 1200@60Hz (32 bpp)
• 16MB Video Memory
HPE iLO 5 on system management memory
• 32 MB Flash
• 4 Gbit DDR 3 with ECC protection
Interfacce:
Serial: Optional, rear
Display Port: 1 (SFF 1 front, optional via Universal Media Bay, 826708-B21), 8 LFF chassis standard
FlexibleLOM Network Ports: 4 x 1 Gb ports shipping standard with optional FlexibleLOM or stand up card
HPE iLO Remote Management Network Port : 1 Gb Dedicated
Front iLO Service Port: 1 standard (Not available on 12 LFF chassis or when SID is ordered, note iLO dongle required, 880123-B21)
Micro SD Slot: 1 Micro SD
NOTE: The Micro SD slot is not a hot-pluggable device. Customers should not attempt to plug an SD card into the SD slot while the server is powered.
USB 3.0: Up to 5 total: 1 front, 2 rear, 2 internal (secure), 2 optional USB 2.0 front via Universal Media Bay, or standard on 8LFF chassis
SID (Systems Insight Display) Optional
NOTE: Not shipping as standard. Available as a CTO option or as a field upgrade (826703-B21).
Ventole:
Standard – fan types included
NOTE: 1P models typically ship with 4 standard fans. The second processor option kit contains 2 additional fans. 1P Models have (4) (N+1 redundancy standard).
NOTE: 2P models typically ship with 6 standard fans. 2P Models have (6) (N+1 redundancy standard).
NOTE: The 12 LFF and 24 SFF chassis ship with 6 High performance fans as standard.
NOTE: The 8LFF chassis ships with 6 standard fans as standard.
NOTE: High performance fan kit is available to meet ambient temperature environments.
NOTE: High performance fan kits are required for rear drives, Graphics (GPU) card or NVMe configurations.
Alimentatore
1 x HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
Max 2 alimentatori
NOTE: Available in 94% efficiency.
Input Requirements (per power supply)
Rated Line Voltage 100 to 120 VAC
200 to 240 VAC
Maximum: For 800W Power Supply: 3207 BTU/hr (at 100 VAC), 3071 BTU/hr (at 200 VAC), 3112 BTU/hr (at 240 VAC) for China Only
Software certificato
CentOS,Microsoft Windows Server 2012 R2,VMware vSphere 6.0 (ESXi),SuSE Linux Enterprise Server 11 SP4,Microsoft Windows Server 2016,Red Hat Enterprise Linux 7.3,Red Hat Enterprise Linux 6.9,VMware vSphere 6.5 (ESXi),SuSE Linux Enterprise Server 12 SP2,ClearOS
HPE and ClearCenter will help you lower the cost of building on-premise solutions without sacrificing security and ease of use. HPE ProLiant servers with ClearOS give you a simple, secure, and affordable operating system with an intuitive web based graphical user interface that provides a cloud-like experience on- premise, and an Application Marketplace with over 100 apps and growing. Whether you’re starting out or scaling, you decide what applications you need and pay as you grow.
NOTE: ClearOS allows you to build a fully functional server that is just right for you at no upfront cost.
For more information on ClearOS, please visit http://www.hpe.com/servers/clearos.
NOTE: For more information on Hewlett Packard Enterprise Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server. http://www.hpe.com/info/ossupport
Gestione del sistema
Integrated Lights-Out 5 (iLO 5) management processor (No Licence) / No OneView or Insight Control
Dimensioni
8.73 x 44.55 x 73.02 cm
(H x W x D)
Peso:
14.9 kg circa
Periodo e tipo garanzia
Garanzia limitata – parti e manodopera – 3 anni – on-site – tempo di risposta:giorno lavorativo successivo
Include anche:
HPE 2U Cable Management Arm (CMA) for Easy Install Rail Kit , HPE 2U SFF Easy Install Rail Kit (CMA not included) , HPE DL38x Gen10 M.2 1x PCIe x16 2 x PCIe x8 Primary Riser Kit FIO
N.B.: Questa scheda è da ritenersi puramente informativa e non contiene alcun tipo di garanzia né implicita né esplicita
