SCHEDA RETE PCI EXPRESS 10/100/1000M TP-LINK TG-3468 32BIT RTL8169SC RJ45 -GARANZIA 3 ANNI-

Descrizione

SCHEDA RETE EXPRESS 10/100/1000M TP-LINK TG-3468 32BIT RTL8169SC RJ45 -GARANZIA 3 ANNI-

CARATTERISTICHE HARDWARE
Standard e protocolli: IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p, CSMA/CD, TCP/IP
Interfaccia:
– 32-bit PCI Express
– 1 10/100/1000Mbps RJ45 port
Media:
– 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
– EIA/TIA-568 100Ω STP (maximum 100m)
– 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
– EIA/TIA-568 100Ω STP (maximum 100m)
– 1000Base-T: UTP category 5, 5e cable (maximum 100m)
LED: Status
Standard wireless: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x
Velocità di trasferimento dati:
– 10/100/1000Mbps for Half-Duplex mode
– 20/200/2000Mbps for Full-Duplex mode
Indicatore LED: 1000Mbps Link/Act, 100Mbps Link/Act, 10Mbps Link/Act
Dimensions: 3.1 × 4.8 × 0.8 in (78.5 × 120.8 × 21.5mm)
Flow control: IEEE 802.3x Flow Control (Full-Duplex)

ALTRO
Certificazione: CE, FCC, RoHS
Contenuto della confezione:

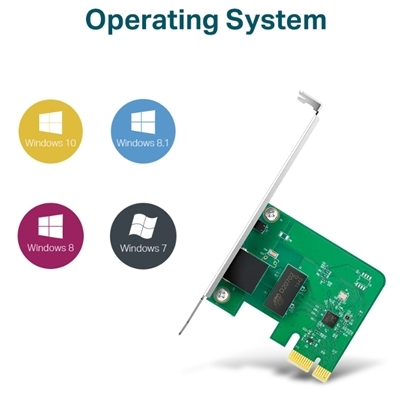

– Gigabit PCI Express Network Adapter TG-3468
– Resource CD
– Quick Installation Guide
Requisiti di sistema: Windows 7(32/64bits),Windows Vista(32/64 bits),Window XP(32/64bits)
Ambiente:
– Operating Temperature: 0℃~40℃ (32℉~104℉)
– Storage Temperature: -40℃~70℃ (-40℉~158℉)
– Operating Humidity: 10%~90% non-condensing
– Storage Humidity: 5%~90% non-condensing
