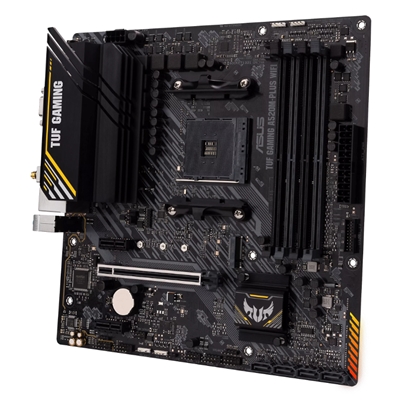

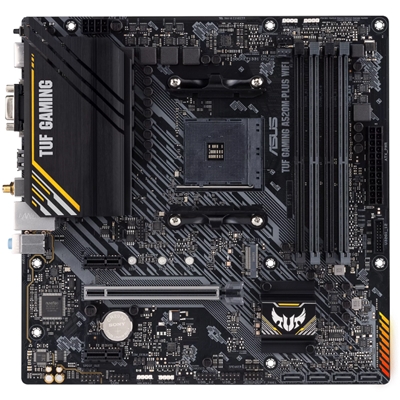

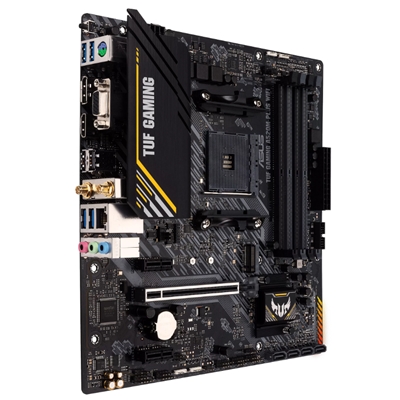

MB ASUS TUF GAMING A520M-PLUS WIFI AM4 4XDDR4DC-4866O.C. DP HDMI 1XPCIE3.0X16 4XSATA3R M.2 WI-FI5 USB3.2 MATX 90MB17F0-M0EAY0

Descrizione

MB ASUS TUF GAMING A520M-PLUS WIFI AM4 4XDDR4DC-4866O.C. DP HDMI 1XPCIE3.0X16 4XSATA3R M.2 WI-FI5 USB3.2 MATX 90MB17F0-M0EAY0

CPU
AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors

Chipset
A520

Memory
4 x DIMM, Max. 128GB, DDR4 4866(OC)/ 4800(OC)/ 4600(OC)/ 4466(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3333(OC)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz, Un-buffered Memory
Dual Channel Memory Architecture

Graphics
1 x DisplayPort 1.2
1 x HDMITM 2.1(4K 60Hz)
1 x D-Sub

Expansion Slots
AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors:
– 1 x PCIe 3.0 x16 slot (supports x16 mode)
AMD A520 Chipset:
– 2 x PCIe 3.0 x1 slots

Storage
Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors:
– M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
AMD A520 Chipset:
– 4 x SATA 6Gb/s ports
Support RAID 0, 1, 10

Ethernet
1 x Realtek 1Gb Ethernet
TUF LANGuard

Wireless & Bluetooth
Realtek Wi-Fi 5 8821CE
1×1 Wi-Fi 5 (802.11 a/b/g/n/ac) with MU-MIMO
Supports dual frequency band 2.4/5GHz
Supports channel bandwidth: HT20/HT40/HT80
Bluetooth v5.0

USB
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 3 USB 2.0 ports

Audio
Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC:
– Supports : Jack detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback”
Audio Features:
– Audio Shielding
– Premium Japanese audio capacitors
– Dedicated audio PCB layers

Back Panel I/O Ports
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x D-Sub
1 x ASUS Wi-Fi Module
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack™ button
1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors
Fan and cooling related:
– 1 x 4-pin CPU Fan header
– 2 x 4-pin Chassis Fan headers
Power related:
– 1 x 24-pin Main Power connector
– 1 x 8-pin +12V Power connector
Storage related:
– 1 x M.2 slot (Key M)
– 4 x SATA 6Gb/s ports
USB:
– 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
– 2 x USB 2.0 headers support additional 3 USB 2.0 ports
Miscellaneous:
– 2 x AURA Addressable Gen 2 header
– 2 x AURA RGB headers
– 1 x Clear CMOS header
– 1 x COM Port header
– 1 x Front Panel Audio header (AAFP)
– 1 x S/PDIF Out header
– 1 x Speaker header
– 1 x SPI TPM header (14-1pin)
– 1 x 10-1 pin System Panel header

Special Features
ASUS TUF PROTECTION:
– DIGI+ VRM
– ESD Guards
– TUF LANGuard
– Overvoltage Protection
– SafeSlot Core+
– Stainless-Steel Back I/O
ASUS Q-Design:
– Q-DIMM
– Q-Slot
ASUS Thermal Solution:
– VRM heatsink design
ASUS EZ DIY:
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
AURA Sync:
– AURA RGB headers
– Addressable Gen 2 RGB headers

Software Features
ASUS Exclusive Software:
Armoury Crate
– Aura Creator
– Aura Sync
AI Suite 3
– Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
Fan Xpert 2+
– EZ update
– PC Cleaner
– System Information
TUF GAMING CPU-Z
AI Charger
ASUS Turbo LAN
DAEMON Tools
MyAsus
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS:
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode

BIOS
128 Mb Flash ROM, UEFI AMI BIOS

Manageability
WOL by PME, PXE

Accessories
Cables:
– 2 x SATA 6Gb/s cables
Miscellaneous:
– 1 x I/O Shield
– 1 x M.2 SSD screw package
– 1 x ASUS Wi-Fi moving antenna
– 1 x TUF Gaming sticker
Installation Media:
– 1 x Support DVD
Documentation:
– 1 x TUF Certification card
– 1 x User manual

Operating System
Windows® 10 64-bit

Form Factor
microATX
24.4cm x 24.4cm
