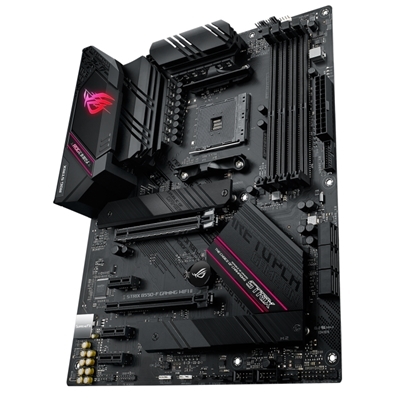

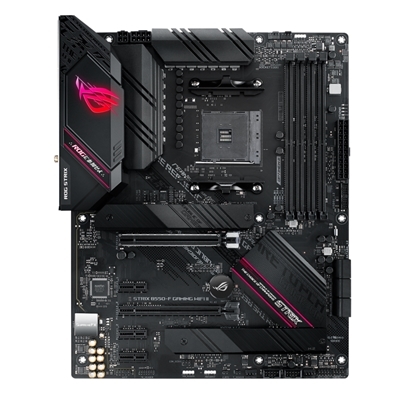

MB ASUS ROG STRIX B550-F GAMING WI-FI II B550 AM4 4XDDR4-4400OC 1XPCIE4.0X16 HDMI DP 6XSATA3 M.2 USB3.2 ATX 90MB19V0-M0EAY0

Descrizione

MB ASUS ROG STRIX B550-F GAMING WI-FI II B550 AM4 4XDDR4-4400OC 1XPCIE4.0X16 HDMI DP 6XSATA3 M.2 USB3.2 ATX 90MB19V0-M0EAY0

CPU
AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors

Chipset
B550

Memory
AMD Ryzen™ 5000 and 3000 Series Desktop Processors:
– 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/ 4666(O.C.)/ 4600(O.C.)/ 4400(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz, Un-buffered Memory
AMD Ryzen™ 5000 and 4000 G-Series Processors:
– 4 x DIMM, Max. 128GB, DDR4 5100(O.C)/ 4866(O.C.)/ 4600(O.C)/ 4466(O.C.)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz, Un-buffered Memory
ECC Memory (ECC mode) support varies by CPU.

Graphics
1 x DisplayPort 1.2
1 x HDMI® 2.1

Expansion Slots
AMD Ryzen™ 5000 and 3000 Series/ 5000 and 4000 G-Series Desktop Processors:
– 1 x PCIe 4.0 x16 SafeSlot (supports x16 mode)
AMD B550 chipset:
– 1 x PCIe 3.0 x16 slot (supports x4 mode)
– 3 x PCIe 3.0 x1 slots

Storage
Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports:
– AMD Ryzen™ 5000 and 3000 Series/ 5000 and 4000 G-Series Desktop Processors
– M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
AMD B550 Chipset:
– M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
– 6 x SATA 6Gb/s ports
Support RAID 0, 1, 10

Ethernet
1 x Intel® 2.5Gb Ethernet
1 x Intel® I225-V 2.5Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth
Wi-Fi 6E
2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band
Bluetooth v5.2

USB
Rear USB: Total 8 ports
– 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®)
– 4 x USB 3.2 Gen 1 ports (4 x Type-A)
– 2 x USB 2.0 ports
Front USB: Total 6 ports
– 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
– 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio
ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A
– Impedance sense for front and rear headphone outputs
– Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
– Supports up to 32-Bit/192kHz playback
Audio Features:
– SupremeFX Shielding Technology
– Dual OP Amplifiers
– Premium audio capacitors
– Audio cover

Back Panel I/O Ports
2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports
1 x Wi-Fi Module
1 x DisplayPort
1 x HDMI® port
1 x Intel® I225-V 2.5G Ethernet
1 x Optical S/PDIF out
5 x Audio jacks
1 x BIOS FlashBackTM button

Internal I/O Connectors
Fan and cooling related:
– 1 x 4-Pin AIO_Pump header
– 1 x 4-Pin CPU fan header
– 1 x 4-Pin CPU_OPT fan header
– 3 x 4-Pin Chassis fan headers
Power related:
– 1 x 24-pin main power connector
– 1 x 8-pin +12V power connector
– 1 x 4-pin +12V power connector
Storage related:
– 2 x M.2 slots (Key M)
– 6 x SATA 6Gb/s ports
USB ports:
– 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
– 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous:
– 1 x Addressable Gen 2 header
– 2 x AURA RGB headers
– 1 x Clear CMOS header
– 1 x Front panel audio header (AAFP)
– 1 x 20-3 pin System Panel header with Chassis intrude function
– 1 x Thermal sensor header
– 1 x Thunderbolt™ header

Special Features
ASUS Q-Design
– ASUS Q-DIMM
– ASUS Q-LED (DRAM [yellow],CPU [red],VGA [white], Boot Device [yellow green)
– ASUS Q-Slot
ASUS Thermal Solution
– M.2 heatsink
AURA Sync
– AURA RGB headers
– Addressable Gen 2 RGB headers
ASUS EZ DIY
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
– Clear CMOS header
– ProCool
– Pre-mounted I/O shield
– SafeSlot

Software Features
ROG Exclusive Software
– RAMCache III
– ROG CPU-Z
– GameFirst VI
– Sonic Studio III + Sonic Studio Virtual Mixer
– Sonic Radar III
– DTS® Sound Unbound
– Overwolf
– Anti-virus software
ASUS Exclusive Software Features
Armoury Crate
– AIDA64 Extreme (60 days free trial)
– Aura Creator
– Aura Sync
– Two-Way AI Noise Cancelation
AI Suite 3:
– Performance And Power Saving Utility
 EPU
 DIGI+ VRM
 Fan Xpert 4
 TurboV EVO
– EZ update
WinRAR
DAEMON Tools
Norton Anti-virus software (Free Trial version)
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode

BIOS
256 Mb Flash ROM, UEFI AMI BIOS

Manageability
WOL by PME, PXE

Accessories
Cables:
– 1 x Addressable RGB extension cable
– 4 x SATA 6Gb/s cables
Miscellaneous:

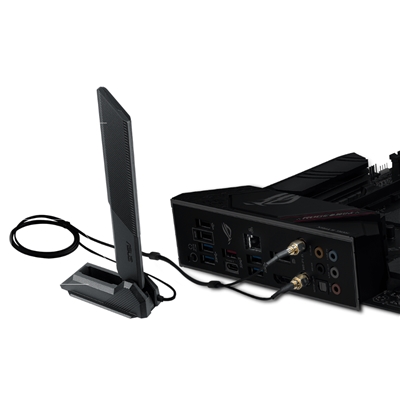

– 1 x ASUS Wi-Fi moving antennas
– 1 x Cable ties pack
– 1 x M.2 Rubber Package
– 1 x M.2 SSD screw package
– 1 x ROG key chain
 -1 x ROG Strix stickers
 -1 x ROG Strix thank you card
Installation Media:
– 1 x Support DVD
Documentation:
– 1 x User manual

Operating System
Windows® 11 64-bit, Windows® 10 64-bit

Form Factor
ATX
30.5cm x 24.4cm
