Descrizione

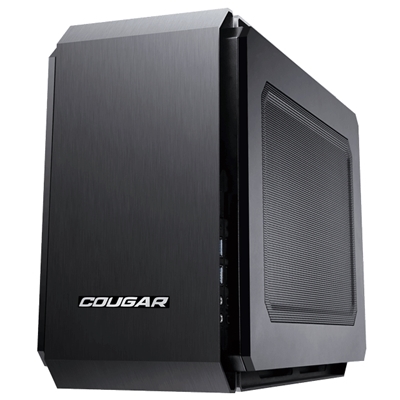

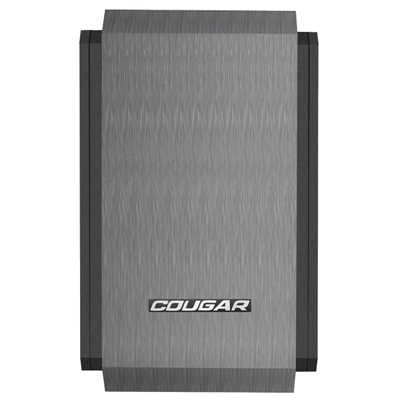

CABINET MINI ITX COUGAR 108M020 QBX EUROPE NERO 178X291X384MM 2SLOT 1X3,5” 4X2,5” 2XUSB3.0
Case Type: Mini-ITX Case
Motherboard Type: Mini-ITX
Dimension (WxHxD): 7.01 x 11.46 x 15.12 (inch) / 178 x 291 x 384 (mm)
Optical Disk Drive (ODD) Type: Supports ONLY Slot Loading Slim ODD
3.5″ Internal Drive Bay (HDD): 1
2.5″ Drive Bay (HDD/SSD): 4
Expansion Slots (For example for Graphics Card): 2
I/O Panel: 2 x USB 3.0 / HD audio
Cooling System Max. Supported Installation: 7 Fans:
– Front: 80mm Fan x 1 (optional)
– Top: 120mm Fans x 2 (optional)
– Rear: 90mm Fan x 1 (pre-installed)
– Bottom: 120mm Fans x 2 (optional)
– Left Side: 120mm Fan x 1 or 240mm radiator with a single 120mm fan or 120mm radiator with a 120mm fan
Cable management system: Cable feedthrough on the motherboard tray for easily routing and hiding cables.
Fan Filter (Cleanable):
– 1 x Bottom Filter (pre-installed and removable)
– 1 x Front Filter (included, installed by the user)
Water cooling support:
– Left Side: 240mm radiator with a single 120mm fan or 120mm radiator with a 120mm fan
Max. Graphic card Length: 350mm (Support for High End Graphics Cards)
Max. CPU cooler height: 105mm
PSU: PS2 ATX Type (up to 140mm long)
Compatible PSU: Support COUGAR PSU A Series and STX Series
