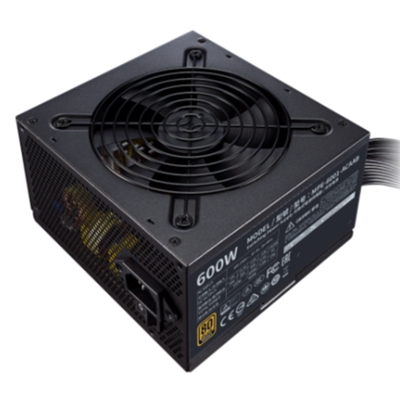

ALIMENTATORE ATX 600W COOLERMASTER BRONZE V2 80PLUS MPE-6001-ACAAB-EU PFC ATTIVO 240VAC FAN120MM CAVO EU

Descrizione

ALIMENTATORE ATX 600W COOLERMASTER BRONZE V2 80PLUS MPE-6001-ACAAB-EU PFC ATTIVO 240VAC FAN120MM CAVO EU

Model
MPE-6001-ACAAB

ATX Version
ATX 12V V2.52

PFC
Active PFC

Input Voltage
100-240V

Input Current
10-5A

Input Frequency
50-60Hz

Dimensions (L x W x H)
140 x 150 x 86 mm

Fan Size
120mm

Fan Bearing
HDB

Fan Speed
2400 RPM

Noise Level @ 20%
11.65 dBA

Noise Level @ 50%
13.9 dBA

Noise Level @ 100%
34.9 dBA

Efficiency
85% Typically

80 PLUS Rating
Bronze

ErP 2014 Lot 3
Yes

Operating Temperature
40°C

Power Good Signal
100 – 500 ms

Hold Up Time
>18ms at 100% Full Load @ 230Vac

MTBF
>100,000 Hours

Protections
OVP, OPP, SCP, UVP, OTP

Regulatory
CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC, CB

ATX 24 Pin Connectors
1

EPS 4+4 Pin Connectors
1

EPS 8 Pin Connector
1

SATA Connectors
6

Peripheral 4 Pin Connectors
4

PCI-e 6+2 Pin Connectors
2

80 Plus
Bronze

Modular
Non Modular

Wattage
500 to 750W

Series
MWE Bronze Series
